Pump

Powered MiniEx

Powered MiniEx is the world’s smallest and lightest air-driven reciprocating pump.

  • High-pressure pumping is possible even with a small size (approx. 10 MPa).
  • Compatible with 1kg-18kg cans, cartridges, and other special containers.
  • Direct pumping from the container eliminates air contamination from the outside.
  • Available for abrasive materials containing fillers such as metals (abrasion-resistant specifications).
  • Materials of wetted parts can be changed depending on the material.

ー Materials used ー

Grease, sealant, adhesive, liquid gasket, heat dissipation compound, etc. MiniEx is our registered trademark.

  • ME-001 Pump for 1kg can

    ME-001 Pump for 1kg can
    • Dimension W255mm×D210mm×H345mm (H495mm : when removing and attaching the can)
    • Weight 6.5kg
    • Applicable can size Outer diameterφ112mm×Height142mm

    Outline Drawings
  • ME-003 / 004 Pump for 3-4kg can

    ME-003 / 004 Pump for 3-4kg can
    • Dimension W285mm×D270mm×H420mm (H650mm : when removing and attaching the can)
    • Weight 8.0kg
    • Applicable can size ME-003=Outer diameterφ156mm×Height172mm ME-004=Outer diameterφ162mm×Height210mm
    Outline Drawings
  • ME-018SF Pump for Pail can

    ME-018SF Pump for Pail can
    • Dimension W475mm×D325mm×H570mm (H970mm : when removing and attaching the can)
    • Weight 25.0kg
    • Applicable can size Outer diameterφ298mm×Height362mm
    Outline Drawings

High pressure pump for cartridge

  • CX-600-III MiniEx for cartridge

    MiniEx for cartridge
    • Dimension W239mm×D200mm×H594mm
    • Weight 6.0kg
    • Applicable can size Outer diameterφ50mm×Height220mm
    Outline Drawings
  • CX-602-II MiniEx for double cartridges

    CX-602-II MiniEx for double cartridges
    • Dimension W324mm×D200mm×H594mm
    • Weight 13.0kg
    • Applicable can size Outer diameterφ50mm×Height220mm
    Outline Drawings

Product Comparison Chart

Name ME-001 / ME-003 / ME-004 / ME-018SF / CX-600-III / CX-602-II
Pressure ratio 5×1 10×1 20×1
Discharge amount 11.0cc/cycles 6.6cc/cycles 3.2cc/cycles
Air consumption 38L/min(ANR) (0.4MPa:When operated at 50 cycles/min)
Material outlet diameter Rc1/4
Air inlet diameter φ6

Pale pump / Drum pump series

High-pressure pressure pump for pails and drums.

  • Pump operation sound is very quiet(our measured value: 72dB)
  • The flat follow plate is used so that the material can be used up to the end.
  • Direct pumping from the container eliminates air contamination from the outside.
  • Expanding / contracting seal wiper is equipped with can, so can replacement is easy (except for IP-035-30)
  • No material leakage due to high durability structure, overhaul frequency is also reduced
  • Wiper expansion/contraction can be selected. Pressure-feeding capacity is 25% higher than conventional products.
  • Compatible with abrasive materials containing fillers such as metals (abrasion-resistant specifications)
  • Material of wetted parts can be changed depending on the material.

ー Materials used ー

Grease, sealant, adhesive, liquid gasket, heat dissipation compound, etc.

  • YP075 / YP073 Pale Pump (New release in 2019)

    Developed the world’s first expanding / contracting seal wiper for pail cans

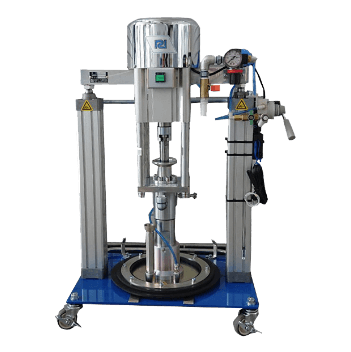

    YP075 / YP073 Pale Pump(New release in 2019)
    • Dimension (H1541mm : when removing and attaching the can)
    • Weight YP075 83.5kg / YP073 78.5kg
    • Applicable can size Outer diameterφ298mm×Height362mm
    YP075 External YP073 External
  • IP-035-30 Pale Pump

    [ Compact Size ]

    IP-035-30 Pale Pump
    • Dimension W475mm×D325mm×H765mm
      (H1165mm : when removing and attaching the can)
    • Weight 50.0kg
    • Applicable can size Outer diameterφ298mm×Height362mm
    Outline Drawings

Product Comparison Chart

Name YP075 YP073 IP-035-30
pressure ratio 50×1 30×1 30×1
Discharge rate 70cc/cycle 70cc/cycle 35cc/cycle
Max discharge pressure 30MPa(FKM packing specification 21MPa) 18MPa 12MPa
Maximum discharge volume 1.4L/min 1.4L/min 0.7L/min
Air consumption 20L/cycle 12L/cycle 12L/cycle
Driving source Supply air pressure 0.2MPa or higher + AC100V or DC24V

YD075 / YD073 Drum Pump (New release in 2019)

[ Expanding / contracting seal wiper can be selected. Pumping capacity 25% increase compared to conventional products ]

YD075 / YD073 Drum Pump (New release in 2019)
  • Dimension W914mm×D610mm×H1400mm
    (H2400mm : when removing and attaching the can)
  • Weight YD075 180kg / YD073 175kg
  • Applicable can size Inner diameterφ566mm × Height890mm
YP075 External YP073 External

Product Comparison Chart

Name YD075 YD073
pressure ratio 50×1 30×1
Discharge rate 70cc/cycle 70cc/cycle
Max discharge pressure 30MPa(FKM packing specification 21MPa) 18MPa
Maximum discharge volume 1.4L/min 1.4L/min
Air consumption 20L/cycle 12L/cycle
Driving source Supply air pressure 0.2MPa or higher + AC100V or DC24V

Gun, Valve

Manual gun

  • PCN-201 Pencil Gun

    PCN-201 Pencil Gun

    Pencil type discharge valve for manual operation.
    Lightweight and easy to work with, it enables dispensing of high-viscosity materials simply by squeezing the lever.

    • Dimension φ16mm×L150mm
    • Weight 105g
    • Maximum Operating Pressure 4MPa
    • Operation method Manual (lever operation)
    Outline Drawings
  • PCN-211 Pencil gun with slender nozzle

    PCN-211 Pencil gun with slender nozzle

    Especially suitable for injection into work details.

    • Dimension φ16mm×L220mm
    • Weight 105g
    • Maximum Operating Pressure 4MPa
    • Operation method Manual (lever operation)
    Outline Drawings
  • NG-207 Flow Gun

    NG-207 Flow Gun

    High pressure resistant manual gun.

    • Dimension L230mm
    • Weight 520g
    • Maximum Operating Pressure 15MPa
    • Operation method Manual (lever operation)
    Outline Drawings

Automatic gun

  • PC-604 AC PENSER GUN

    PC-604 AC PENSER GUN

    A small automatic gun suitable for handheld or robotic handling

    • Dimension φ28mm×L135mm
    • Weight 180g
    • Maximum Operating Pressure 4MPa
    • Operation method Air (0.3MPa or more)
    Outline Drawings
  • V-048 Suck Back Gun

    V-048 Suck Back Gun

    This valve eliminates the that occurs when applying adhesive or silicone. Seal material can be selected from NBR and Teflon.

    • Dimension φ28mm×L125mm
    • Weight 260g
    • Maximum Operating Pressure NBR 8MPa / 15MPa for Tefron
    • Operation method Air (0.3MPa or more)
    Outline Drawings
  • V-056 Suck Back Gun

    V-056 Suck Back Gun

    This valve eliminates for small amount application. Seal material can be selected from NBR and Teflon.

    • Dimension φ25mm×L105mm
    • Weight 220g
    • Maximum Operating Pressure NBR 8MPa / 15MPa for Tefron
    • Operation method Air (0.3MPa or more)
    Outline Drawings
  • V-057 Suck Back Gun (Silicone Type)

    V-057 Suck Back Gun (Silicone Type)

    This valve eliminates for moisture absorption curing type silicone (RTV). Seal material can be selected from NBR and Teflon.

    • Dimension φ28mm×L140mm
    • Weight 320g
    • Maximum Operating Pressure NBR 8MPa / 15MPa for Tefron
    • Operation method Air (0.3MPa or more)
    Outline Drawings
  • V-062 High Durability Suck Back Gun

    V-062 High Durability Suck Back Gun

    Ideal for wear-resistant materials. Designed to prevent liquid leakage due to packing wear. Seal material can be selected from NBR and Teflon.

    • Dimension φ28mm×L125mm
    • Weight 300g
    • Maximum Operating Pressure NBR 8MPa / 15MPa for Tefron
    • Operation method Air (0.3MPa or more)
    Outline Drawings

Fixed quantity valve

V-055 Volumetric metering valve

V-055 Volumetric metering valve

Since the material is discharged by volumetric metering, it can always be dispensed quantitatively regardless of change of viscosity.
By using an auto switch, replenishment and discharge can be confirmed. The plunger is designed to return to its original position by the material pressure, preventing miss shots.

  • Dimension W57mm×D116mm×H226mm
  • Weight 1.7kg
  • Maximum Operating Pressure 12MPa
  • Operation method Air (0.3MPa or more)
V-055-1-XXX Outline Drawings V-055-2-XXX Outline Drawings

Product Comparison Chart

Model Maximum discharge volume(cc) Plunger diameter(mm)
Cross section
Discharge pressure ratio Switching pressure ratio Stroke(mm)
V-055-1-075 MAX0.77 φ6.3(0.31) 40×1 40×1 25
V-055-1-125 MAX1.25 φ8(0.50) 25×1
V-055-1-300 MAX3.0 φ12.5(1.23) 10×1
V-055-2-350 MAX3.5 φ12.5(1.23) 16×1 30
V-055-2-500 MAX5.3 φ15(1.77) 11×1
V-055-2-900 MAX9.4 φ20(3.14) 6×1

GC-24 Micro amount metering valve micro measure

GC-24 Micro amount metering valve micro measure

Precise micro-metering and dispensing. Refilling and dispensing can be checked by using a sensor. The dispensing volume can be adjusted by simply turning the knob on the micrometer.

  • Dimension W40mm×D112mm×H236mm
  • Weight 850g
  • Maximum Operating Pressure 7MPa
  • Operation method Air (0.3MPa or more)
Outline Drawings

Product Comparison Chart

Model Maximum discharge volume(cc) Plunger diameter(mm) Discharge pressure ratio Switching pressure ratio Stroke(mm)
GC-24-U3 MAX0.09 φ3 44×1 26×1 13
GC-24-U4 MAX0.16 φ4 25×1
GC-24-U5 MAX0.25 φ5 16×1
GC-24-U6 MAX0.36 φ6 11×1
 GC-24-U6.3 MAX0.40 φ6.3 11×1

GC-57 Small Metering Valve SP Major

GC-57 Small Metering Valve SP Major

Lightweight and compact design makes installation easy. Suitable for hand-held work. By using an auto switch, replenishment and discharge can be confirmed.

  • Dimension φ28mm×L140mm
  • Weight 350g
  • Maximum Operating Pressure 5MPa
  • Operation method Air (0.3MPa or more)
  • Discharge pressure ratio 8×1
  • Discharge rate 0.1cc~0.5cc
Outline Drawings

Constant flow discharge system Revolex

Constant flow discharge system Revolex

The system is motor-controlled to provide high accuracy and can be used for all types of dispensing methods.

Outline Drawings
  • Discharges high-viscosity materials such as grease and silicone at a constant flow rate without pulsation
  • Flow speed can be freely set for acceleration and deceleration
  • Dispensing while measuring enables highly accurate application.
  • 2-liquid metering and metering type also available

[ Proven examples ]

Engine gasket drawing application / High-viscosity silicon high-precision filling of DVD / CD dampers / Steering and ball screw filling with grease constant flow / High-precision constant flow filling into molding machine

Filter

Filter

Used to prevent damage to valves, metering machines, etc. It is also ideal for preventing foreign matter from mixing with products.

  • F-50 High pressure filter

    F-50 High pressure filter
    • Dimension φ122mm×H247mm
    • Weight 10kg
    • Maximum Operating Pressure 12MPa
    • Port size Rc 1
    • Standard element 60#
    Outline Drawings
  • F-40 Low pressure filter

    F-40 Low pressure filter
    • Dimension φ100mm×H204mm
    • Weight 2.3kg
    • Maximum Operating Pressure 2.5MPa
    • Port size Rc 3/4
    • Standard element 50# / 100#
    Outline Drawings
  • PF-324 Mini filter

    PF-324 Mini filter
    • Dimension φ60mm×H135mm
    • Weight 1.7kg
    • Maximum Operating Pressure 20MPa
    • Port size Rc 3/8
    • Standard element 60# / 100#
    Outline Drawings

Pressure reducing valve

Pressure reducing valve for high viscosity fluids such as grease, silicone, adhesive, LIM materials. Ideal for stabilizing the central lubrication system and adjusting pressure fluctuations. Pressure gauges (10MPa and 16MPa) are available as an option.

PPR0332M Pressure Reducing Valve

PPR0332M Pressure Reducing Valve
  • Dimension W41mm×D39mm×H105mm
  • Weight 680g
  • Maximum Operating Pressure 21MPa
  • Pressure Adjustment Range 2〜15MPa
  • Port size IN side Rc 3/8 / OUT side Rc 1/4
Outline Drawings
